Outdoor IP65 Waterproof 12W 18W 36W LED Wall Washer light

FOB Reference Price:Get Latest Price
US $15.6-25 / Piece | 1 Piece/Pieces led wall washer (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month led wall washer
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Wall Washers
LED Light Source:
Epistar
Warranty(Year):
3
Input Voltage(V):
DC12-24V
Lamp Power(W):
36
Lamp Luminous Flux(lm):
3600
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
75
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HZ
Model Number:
HZ-WW-003
type:
LED Wall Washer
Dimension:
1000x646x46mm
Color:
rgb or singel color
Power factor:
>0.95
LED quantity:
36pcs
Power:
36w
LED brand:
epistar or brideglux
Warranty:
3years
Voltage:
12/24VDC/AC100-240V
Control method:
current or dmx512
Packaging & Delivery
Packaging Details
4pcs led wall washer packed in 117x25x26cm
QTY:3680PCS/20GP
Delivery Time
Shipped in 5 days after payment

hot sales ip65 36w rgb led wall washer



Specifications  of led wall washer :



Model No.

HZ-WW-003

LED Light Source

High-power LED chip (1W emitter/pc)

LED Quantity

36 PCS LED ( Single color)

LED Luminous Efficiency

100 lm/W

Lamp Total Power

36W

LED Initial Flux

3600lm

Beam Angle of Lens

15/ 30 / 45 / 60 degrees (optional)

Color Rendering Index(CRI)

Ra≥75

IP Rating

IP65/IP67

Working Lifetime

> 40,000hrs

Input Voltage

AC 100-240V;DC12V/DC24V (Optional)

Frequency

47-63Hz

Power Factor (PF)

0.80

Total Harmonic Distortion (THD)

≤ 20%

Storage Temperature

-40°C~+60°C

Working Environment

-40°C~+50°C; 10~95%RH

Lamp Body Material

Aluminum Alloy+Tempered Glass

Net Weight

1.8Kg±5 %

Gross Weight

2.5Kg±5 %

Product Dimension (mm)

L1000*W46*H46mm













Description of led wall washer:



About the product:

      1.Product name:led wall washer

      2.Input voltage,AC85-265V,DC12V,24V led driver is also available

      3.Protection grade is IP 65

      4.PMAM lens,15°30°45°60° for your choice

      5.Ligt body is made of aluminum and tempered glass

      6.Optioanl power can be 9w/12w/15w/18w/24w/36w/48w



About Led source:

1. High brightness 36W power LED (Light-Emitting Diode)

2. Units featuring an exceptional 50.000 hours long life under normal operating conditions.

3. Continuously variable light intensity.

4. No UV / No infrared.

5. Virtually instant light production



About Controller:

       1, Automatic changing.

       2, RF remote control

       3, Switch Power On/Off

       4, RF remote + Switch power On/Off

       5, External controller (Can get the RGB color changing synchronous)

       6, DMX512 (Can get the RGB color changing synchronous)



36w led wall washer products detail show :















Feature of led wall washer:



1.Nice appearance,favorable optical desigh led wall washer

 2.Supper high bright LEDs,energy-saving and enviroment protection

3.Constant current design,low light degradation

4.Long life-span,strong stability

5.Easy setting,shock-proof and concussion-proof

6.CE and RoHS compliance



Color compare of led wall washer :







View angle of led wall washer :



Applications of led wall washer :



1.directly replace traditional light

2.exterior wall of building and commercial area

3. bridge or public park

4. wedding or celebrating occisions.

5.Auto color change make the area splendid

6.compact and polishing and beauty design

7.excellent beauty look design to show our superior

8.warranty for 3 years without any maintainace worries

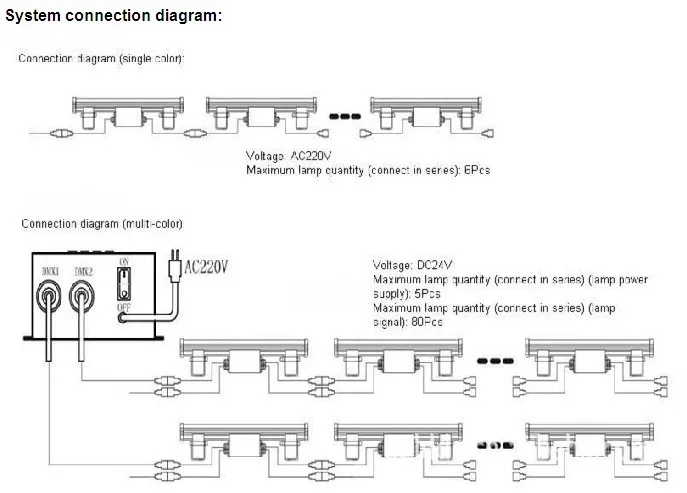

Install Method




Our Services



1. Your inquiry related to our products or prices will be replied in 24hrs

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, any your customized lightings we can help you to design and put into product, protection of your sales   area,ideas of design and all your private information

4. The ability of monthly develop new product can help you enlarge your market

 5.Logo:According to your requirements.

Trade terms:



1.Payment: T/T only 30% deposits before production,balance before shipping



2.Production Lead Time for 100~500pcs: 5~7days: 500-1000pcs:7-12days



3.Sample can be delivered within 3 days.


4.Shipping freight are quoted under your requests
